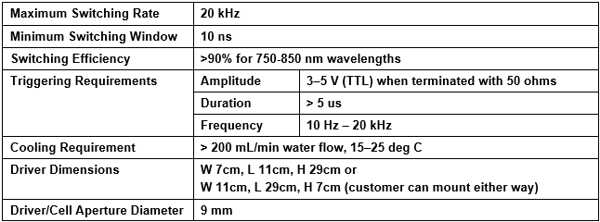

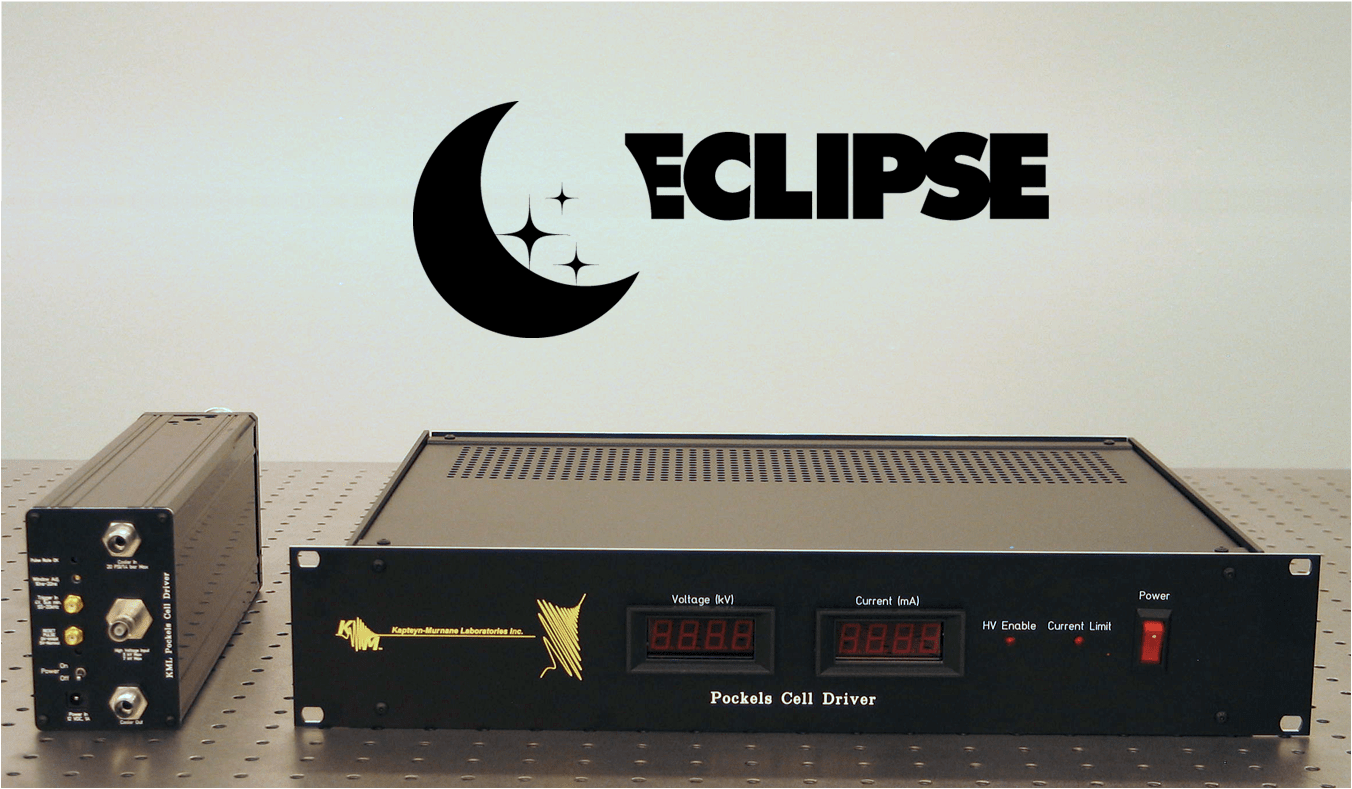

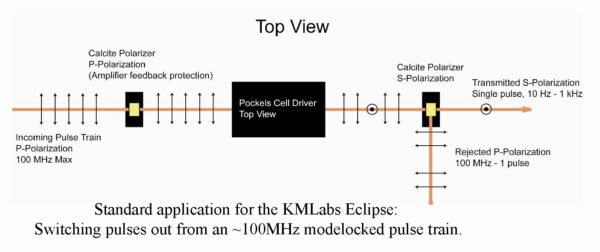

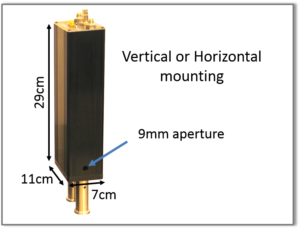

The KMLabs EclipseTM is a high repetition rate, half wave Pockels cell and driver unit, designed for laser pulse picking at up to 20kHz.  The Eclipse has a minimum window of 10ns, and >90% throughput between 750-850nm.  KMLabs’ compact design allows the driver to be packaged in with the optical unit, thus minimizing the high voltage line-length, and thereby maximizing the switching speed.   The high voltage source for the Eclipse is an external, 19”w x 13”d x 3.5”h unit.

Eclipse Pulse Picker

Eclipse Pulse Picker

Eclipse Pulse Picker

Eclipse Pulse Picker
